TMF8805-1B

Overview:

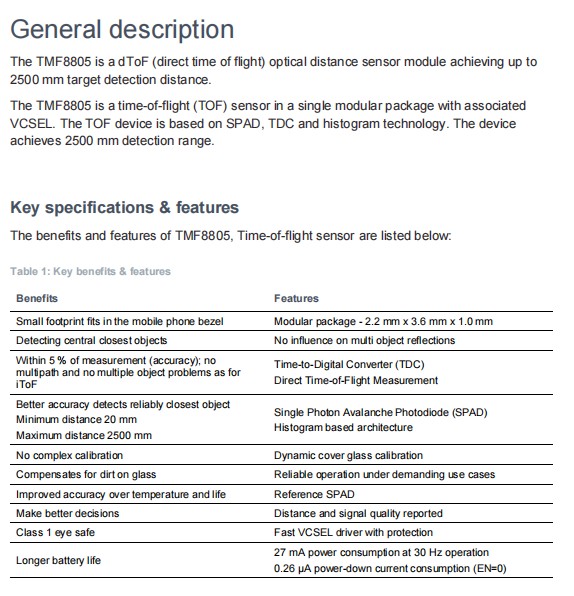

The TMF8805 is a dToF (direct time of flight) optical distance sensor module achieving up to 2500 mm target detection distance.The TMF8805 is a time-of-flight (TOF) sensor in a single modular package with associated VCSEL. The TOF device is based on SPAD, TDC and histogram technology. The device achieves 2500 mm detection range.
Main characteristics:
• Direct ToF technology with high sensitivity SPAD detection
• Fast Time-to-Digital Converter (TDC) architecture
• Sub-nanosecond light pulse
• 20 – 2500mm distance sensing @ 30Hz
• On-chip histogram processing
• 940nm VCSEL Class 1 Eye Safety
• High performance on-chip sunlight rejection filter and algorithm
• Industry’s smallest modular OLGA 2.2 x 3.6 x 1.0 mm package

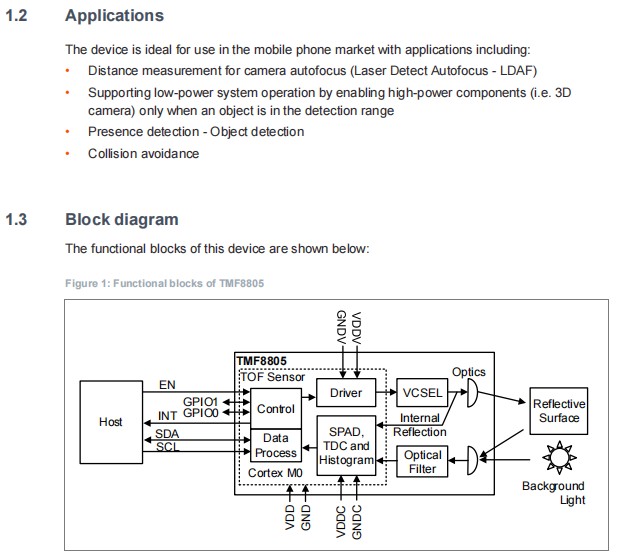

Application：
Application fieldsIndustrial
Robotics
Home & building automation
Projection & display
Factory automation
Appliances & tools
Access control & security
Computing
Computing
Mobile & wearables
Camera enhancement
Lighting
UV-C treatment

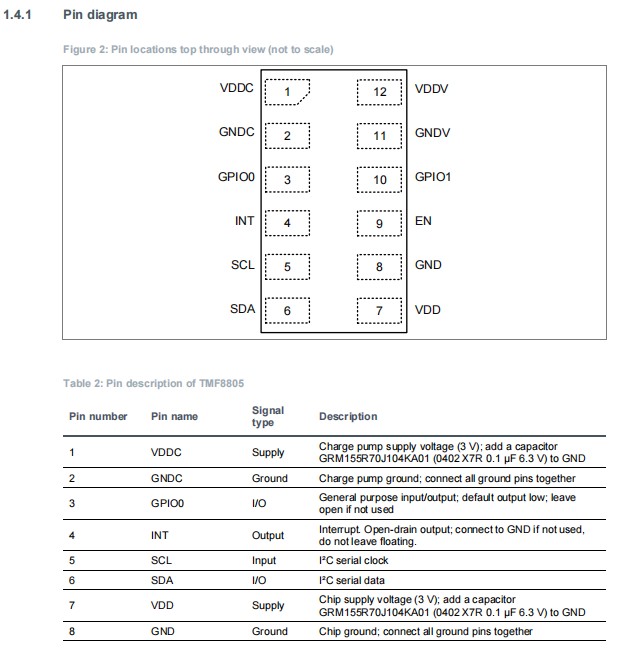

Specification:
