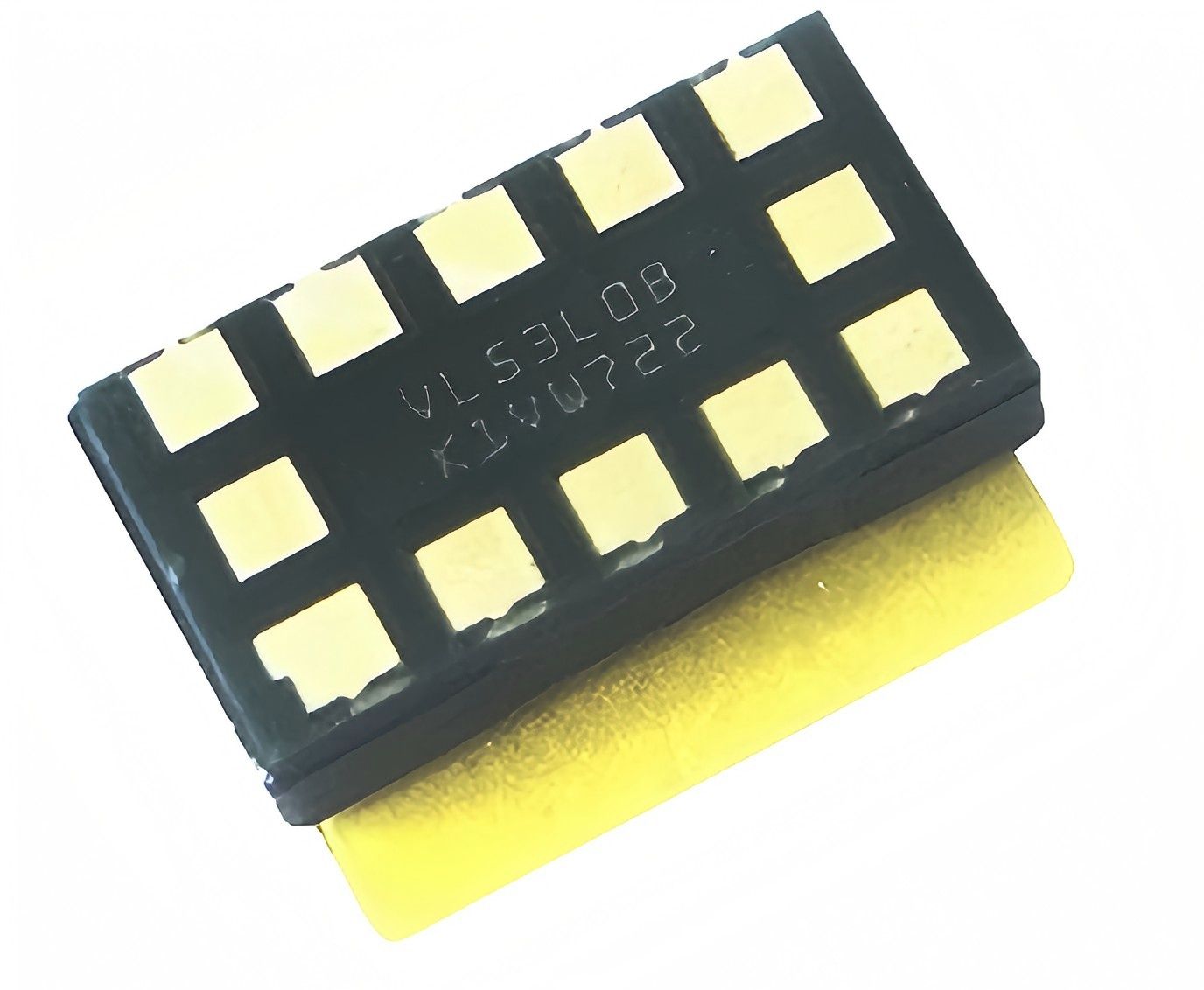

VL53L0CXV0DH/1

Overview:
The VL53L0X is a Time-of-Flight (ToF) laser-ranging module housed in the smallest package on the market today, providing accurate distance measurement whatever the target reflectance, unlike conventional technologies. It can measure absolute distances up to 2 m, setting a new benchmark in ranging performance levels,opening the door to various new applications.The VL53L0X integrates a leading-edge SPAD array (single photon avalanche diodes) and embeds ST’s second generation FlightSense patented technology.The VL53L0X’s 940 nm VCSEL emitter (vertical cavity surface-emitting laser), is totally invisible to the human eye, coupled with internal physical infrared filters, it enables longer ranging distances, higher immunity to ambient light, and better robustness to cover glass optical crosstalk.
Main characteristics:
· Fully integrated micro modules.
· 940 nm laser VCSEL
·VCSEL driver
· Distance measurement sensor with an integrated advanced microcontroller.
·4.4 x 2.4 x 1.0 mm
· Fast and precise distance measurement.
· The absolute measurement range is up to 2 meters.
· The reported distance is independent of the target’s reflectivity.
· Advanced embedded optical crosstalk compensation, simplifying the selection of cover plates.
· Eye safety.
· Class 1 laser device, compliant with the latest standard IEC 60825-1:2014 (3rd edition) requirements.
· Easy to integrate.
· Single reflow soldering components.
· No additional optical components.
· Single-power supply

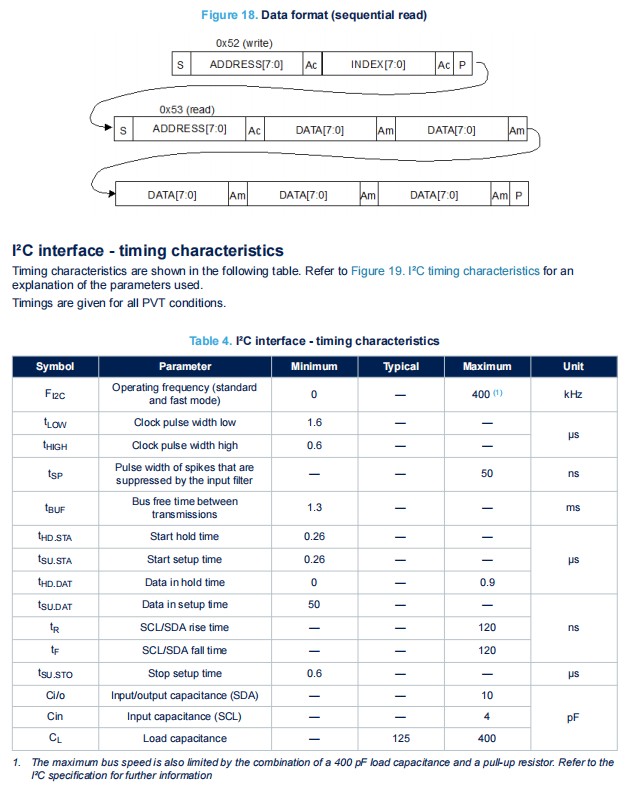

· I2C interface for device control and data transmission.
· Xshutdown (reset) and interrupt GPIO
· Programmable I2C address.

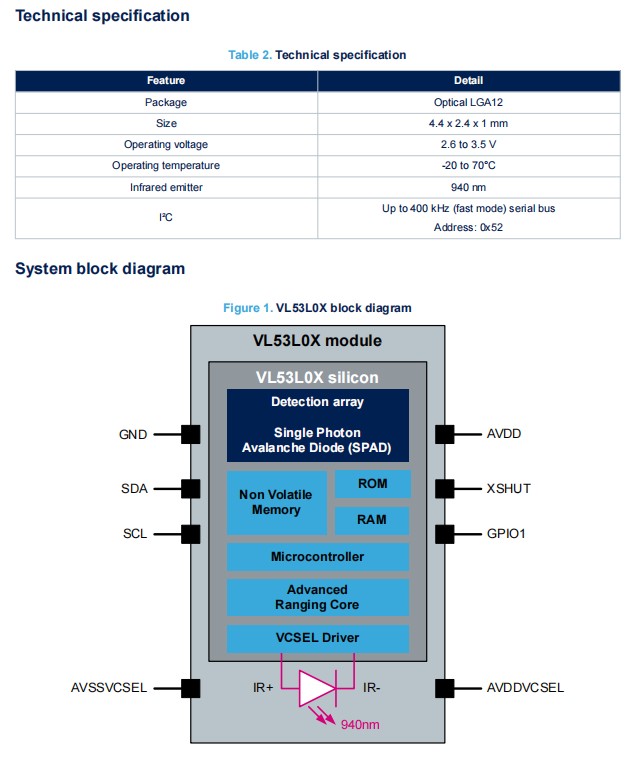

Specification:
