ZX-210-X

Overview:
The ZX-210-X Noise Detection Sensor Module uses imported components with calibrated output signals TTL and IIC, catering to integrators’ low-cost needs.Designed specifically for this application, the direct noise detection module provides uniform calibration for the experimental chamber, ensuring stable and reliable data.
Main characteristics:
A direct-reading noise decibel measurement module developed using an original, imported sound sensor.
The process employs multiple calibration techniques, resulting in high measurement accuracy and sensitivity.
Unique design of the stainless steel probe, which is individually encapsulated and can easily be integrated into other devices or enclosures.
The core components of the control board circuit are fully shielded, not only for aesthetic purposes but also to enhance its resistance to interference.
Multiple output options available: TTL/I2C, standard Modbus RTU communication, 485 interface. Suitable for integration into various applications.
Application：
This product is widely used in scientific research institutions, portable/handheld detectors, fixed gas transmitters, and atmospheric environments.
Detector, dust and noise detection system, noise monitor, detector, automated control system, environmental noise monitoring system, worker
Industries, factories, and other locations requiring measurement.

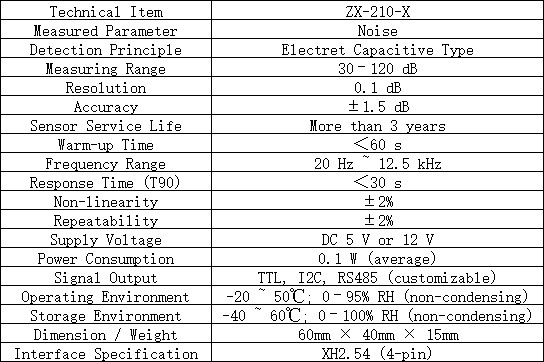

Specification:
